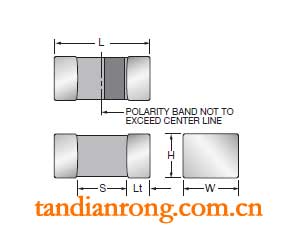

| 编码及对应尺寸对照表（单位:mm(inches)） | ||||||||
| Code | EIA Code | EIA Metric | Length (L) | Width (W) | Height (H) | Termination Spacing(S) | Minimum Termination Length (Lt) | Average Mass |
| A | 1206 | 3216-18 | 3.20 ±0.20 (0.126±0.008) |
1.60 ±0.20 (0.063 ±0.008) | 1.60 ±0.20 (0.063 ±0.008) | 1.80 min. (0.071min.) | 0.15 (0.006) | 44.6mg |
| B | 1210 | 3528-15 | 3.50 ±0.20 (0.138±0.008) |
2.80 +0.20/-0.1 (0.110+0.008/-0.004) |
1.50 max. | 2.00 min. | 0.15 min. | 90.0mg |
| K | 0402 | 1005-07 | 1.00 +0.20/-0.00 (0.039+0.008/-0.000) | 0.50+0.20/-0.00 (0.020+0.008/-0.000) | 0.50+0.20/-0.00 (0.020+0.008/-0.000) | 0.40 min. (0.016min.) | 0.10 (0.004) | 2.8mg |
| L | 0603 | 1608-10 | 1.60+0.20/-0.00 (0.063+0.008/-0.000) | 0.85+0.15/-0.00 (0.033+0.006/-0.000) | 0.85+0.15/-0.00 (0.033+0.006/-0.000) | 0.55 min. (0.022 min.) | 0.15 (0.006) | 8.6mg |
| R | 0805 | 2012-15 | 2.00+0.20/-0.00 (0.079+0.008/-0.000) | 1.35+0.15/-0.00 (0.053+0.006/-0.000) | 1.35+0.15/-0.00 (0.053+0.006/-0.000) | 0.70 min. (0.027 min.) | 0.15 (0.006) | 29.9mg |
| TAC | L | 226 | M | 004 | R | TA |
| Type TACmicrochipΘ | Case Size See table above | Capacitance Code pF code: 1st two digits represent significant figures 3rd digit represents multiplier (number of zeros to follow) | Tolerance K=±10% M=±20% | Rated DC Voltage 002=2Vdc 003=3Vdc 004=4Vdc 006=6.3Vdc 010=10Vdc 016=16Vdc 020=20Vdc 025=25Vdc 035=35Vdc 050=50Vdc | Packaging R, P = 7" Standard Tin Termination Plastic Tape X, Q = 4+1/4" Standard Tin Termination Plastic Tape A = 7" Gold Termination Plastic Tape F = 4+1/4" Gold Termination Plastic Tape | Alternative characters may be used for special requirements |
TACmicrochipΘ Standard Microchip Data Sheet
